UGREEN NASync DXP480T Plus
Intel i5 1235u 10-Core CPU, 10GbE Port, Wi-Fi 6, 8K HDMI, Storage drives not included

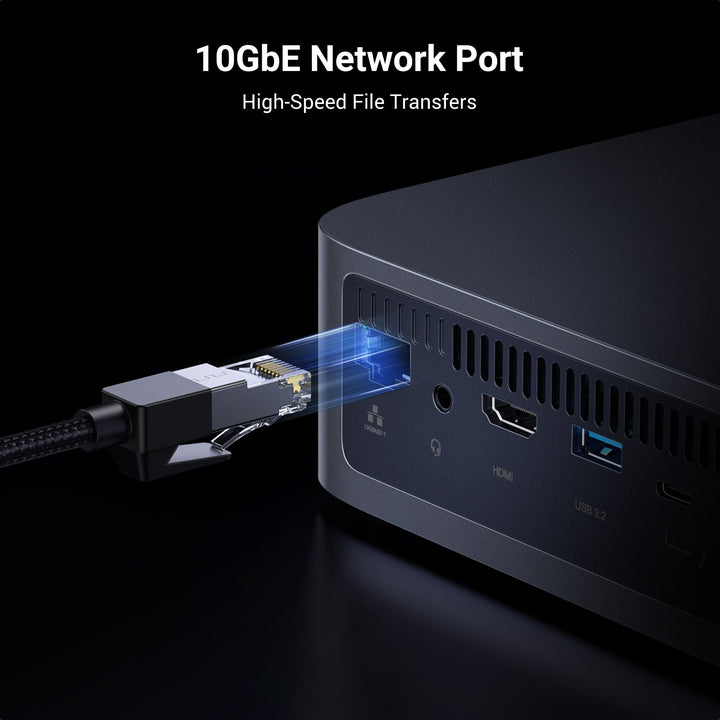

- 10GbE Network Port: With a 10GbE network port that reaches peak speeds of 1250MB/s, you can download large videos and pictures smoothly like a breeze.
- 12th Gen 10-core Intel® Core™ Processor: With a 12th Gen, 10-core 12-thread Intel® Core™ i5 Processor, processing performance is improved by leaps and bounds compared to previous processors.

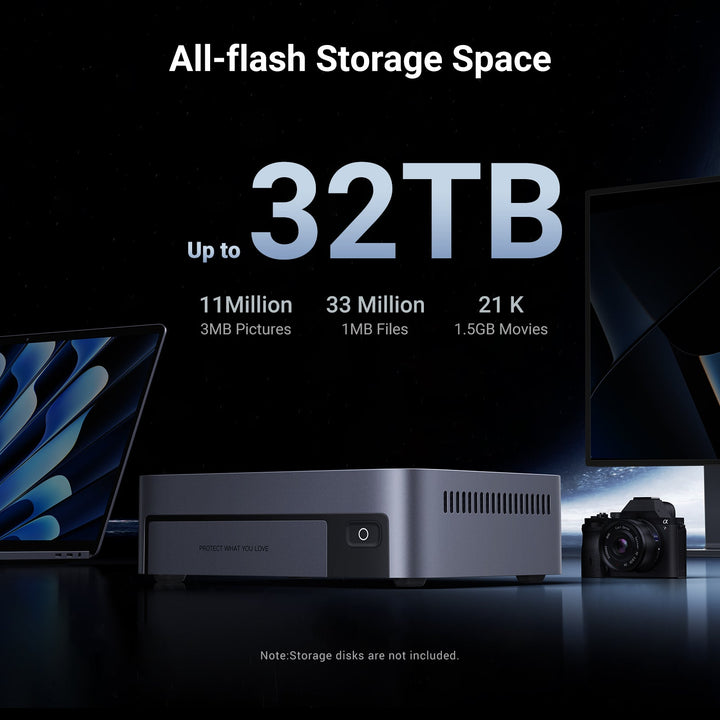

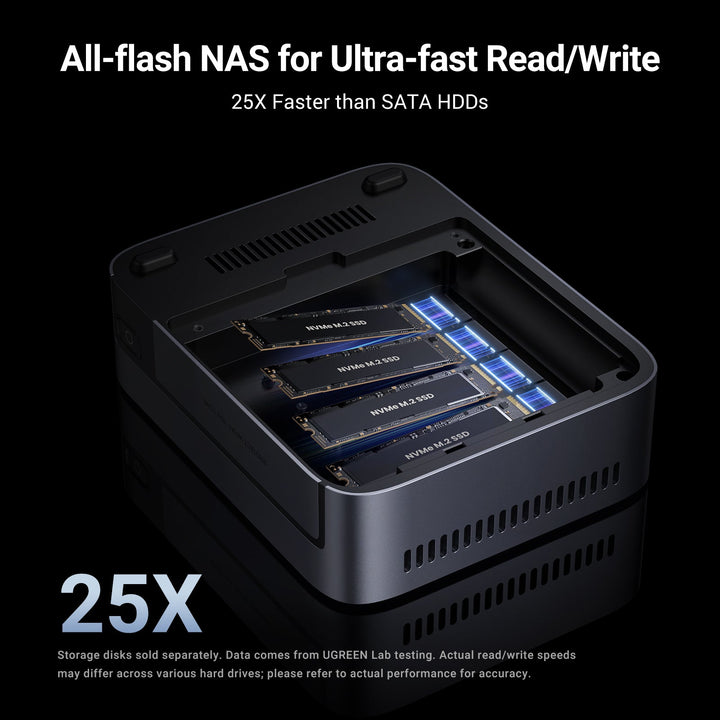

- All-Flash, 32TB Massive Data Storage: Equipped with four M.2 NVMe slots for SSD, this all-flash NASync offers blazing fast read/write speed and has a maximum storage capacity of up to 32TB.
- One, All-Inclusive App: Rather than downloading individual applications for specific functions, the NAS App incorporates these functions into one place. Access Storage Manager, Files, Photos and more, all from one convenient location.

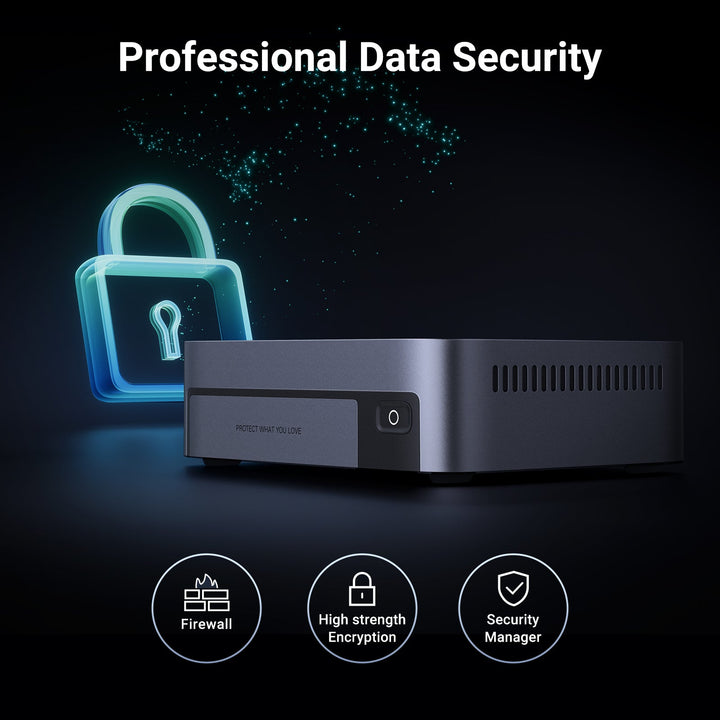

- Professional Data Security: With Professional encryption, data transmission and accounts can be fully protected.
Flash Sale
Ends in
UG related product
Pay with Ease
Trusted Delivery
UGREEN NASync DXP480T Plus
Estimated dispatch within 2 days
$849.99
$999.99
Save $150
Estimated dispatch within 2 days
Comparison with Other UGREEN NASync
Drive Bays
4 Slots (M.2 NVMe)
2-Bay (SATA)
4-Bay (SATA)
4-Bay (SATA)
6-Bay (SATA)
8-Bay (SATA)
CPU Model
1235u
N100
N100
8505
1235u
1235u
Expandable RAM (Max)
64GB
16GB
16GB
64GB
64GB
64GB
Flash Memory (System Disk)
SSD 128GB
eMMC 32GB
eMMC 32GB
SSD 128GB
SSD 128GB
SSD 128GB
SATA Drive Bays
-
2
4
4
6
8
M.2 SSD Drive Slots
4
2
2
2
2
2
RAID
JBOD/Basic/0/1/5/6/10
JBOD/Basic/0/1
JBOD/Basic/0/1/5/6/10
JBOD/Basic/0/1/5/6/10
JBOD/Basic/0/1/5/6/10
JBOD/Basic/0/1/5/6/10
Maximum Storage
32TB (4x 8TB)
64TB (2x 24TB + 2x 8TB)
112TB (4x 24TB + 2x 8TB
112TB (4x 24TB + 2x 8TB)
160TB (6x 24TB + 2x 8TB)
208TB (8x 24TB + 2x 8TB)
LAN Ports (RJ45)
1x 10GbE
1x 2.5GbE
2x 2.5GbE
1x 2.5GbE, 1x 10GbE
2x 10GbE
2x 10GbE
Product
Drive Bays
CPU Model
Expandable RAM (Max)
Flash Memory (System Disk)
SATA Drive Bays
M.2 SSD Drive Slots
RAID
Maximum Storage
LAN Ports (RJ45)
4 Slots (M.2 NVMe)
1235u
64GB
SSD 128GB
-
4
JBOD/Basic/0/1/5/6/10
32TB (4x 8TB)
1x 10GbE
2-Bay (SATA)
N100
16GB
eMMC 32GB
2
2
JBOD/Basic/0/1
64TB (2x 24TB + 2x 8TB)
1x 2.5GbE
4-Bay (SATA)
N100
16GB
eMMC 32GB
4
2
JBOD/Basic/0/1/5/6/10
112TB (4x 24TB + 2x 8TB
2x 2.5GbE
4-Bay (SATA)
8505
64GB
SSD 128GB
4
2
JBOD/Basic/0/1/5/6/10
112TB (4x 24TB + 2x 8TB)
1x 2.5GbE, 1x 10GbE
6-Bay (SATA)
1235u
64GB
SSD 128GB
6
2
JBOD/Basic/0/1/5/6/10
160TB (6x 24TB + 2x 8TB)
2x 10GbE
8-Bay (SATA)
1235u
64GB
SSD 128GB
8
2
JBOD/Basic/0/1/5/6/10
208TB (8x 24TB + 2x 8TB)
2x 10GbE
Specs
| SKU | 25891 |
| Model | DXP480T Plus |
| Supported Language | English, Deutsch, Français, Español, Português, Italiano, 中文, 日本語 |
| Drive Bays | 4 Slots (M.2 NVMe) |
| Operating System | UGOS Pro |
| CPU Model | 1235u |
| CPU Brand & Architecture | Intel X86 12th Generation Intel® Core™ i5 10 Cores 12 Threads |
| Memory (RAM) | 8GB DDR5 |
| ODECC | Supported |
| Expandable RAM (max) | 64GB |
| Flash Memory (System Disk) | SSD 128GB |
| SATA Drive Bays | - |
| M.2 SSD Drive Slots | 4 |
| RAID | JBOD/Basic/0/1/5/6/10 |
| Maximum Storage | 32TB (4x 8TB) |
| LAN Ports (RJ45) | 1x 10GbE |
| PCIe Expansion | - |

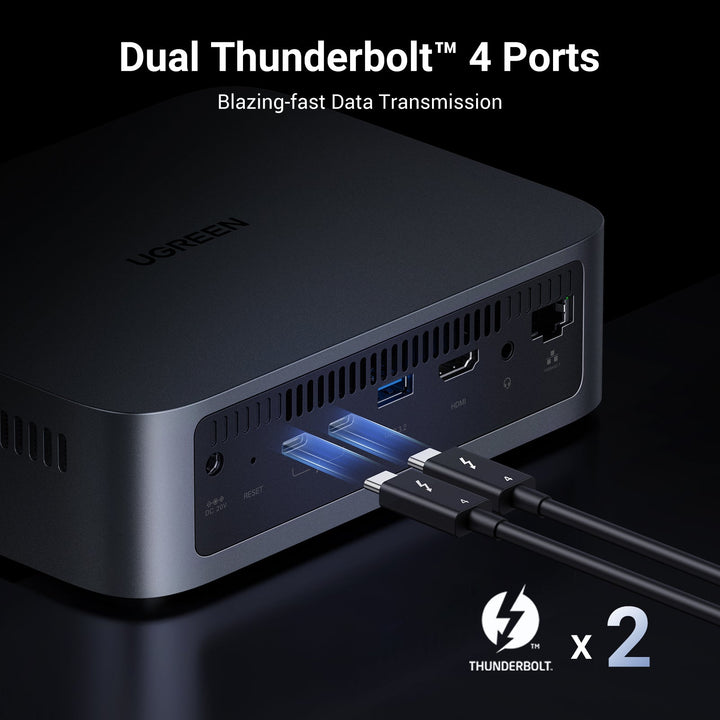

| Thunderbolt™ 4 Ports | 2 |
| High-Speed USB Ports (Front Panel) | - |
| High-Speed USB Ports (Rear Panel) | 2x Thunderbolt 4 (40Gb/s), 1x USB-A (10Gb/s) |
| USB 2.0 (Rear Panel) | - |
| SD Card Reader | - |
| HDMI | 8K |
| Wi-Fi | Built-in |
| Product Dimensions | L7.05×W5.59×H2.05 inches |
